Dev Diary S01E08: Fleshing out the Angular and Azure Web API components



In the last post we talked about me deleting the Azure Application by mistake! In this post we will flesh out our Azure Web API so that we can start to add, edit and store our Invoices in the API layer. We are not quite ready to start implementing the Azure Document Db side yet, that will be in the nexr post.

Let’s get started!


Implement the Invoice API

So I am going to implement the Invoice API using a new Web API Controller, the InvoiceController .

In this initial version, the InvoiceController has implementations for getting all the invoices, get a particular invoice with its reference and add a new invoice and update an existing one.

The guts of the InvoiceController works with an Invoice Repository which has been implemented with the Repository pattern. .

Finally, we need our plain-old CLR objects (POCO), which will represent our Invoices.


Invoice Controller

So firstly, I created an InvoiceController in the Controllers folder using the WebAPI item template.

The code for the InvoiceController.cs is shown below:


Invoice Repository

Next, I created the InvoiceRepository class in a Repositories folder. The repository has been implemented so that it returns a list of Invoice objects.

The InvoiceRepository.cs implementation is shown next:


Invoice Entities and the Special Case Pattern

The Invoice entity is implemented as a new class held within the Models/Entities folder. The Invoice Poco class has all the fields which are used to hold the information related to the Invoice.

The code for the invoice.cs is shown below:


The special case pattern is a approach that I use in most of my applications. The objects have an Exists field which can be used to check whether the object has been found.

This approach helps to avoid using nulls which can be ambiguous when returning data from a particular method. I implemented the InvoiceNotFound  class special case.


Json camelCase formatting

One of the things that we need to do is make sure that the WebAPI formats the JSON in the right way. For JavaScript the right format for an objects properties in JSON is camelCase, where the first letter of the object’s property name is lower case and each subsequent word starts with an upper case.

For example:-

CustomerRelationshipNumber becomes customerRelationshipNumber

So how do we set this up with Web API? Well we needed to do a little tweak to the WebAPIConfig.cs file. This is how it looks:

The code sets up the Json Serialisation so that it uses a CamelCaseFormatter to resolve the property names on objects. This is applied globally.



Update the Angular Application to call the Invoice API

Now that the Invoice Controller is implemented in the WebAPI, next I started on the Angular client so that it calls into the API.


invoiceDataService.js – calls into the API directly, the code is shown below:

The invoiceDataService calls into a shared function executeSave() which will serialize the data being passed into it. Depending on the type of operation on the data, add/update etc then a different method is used.

POST – used to add a new object to the data through the API

PUT – used to update an existing object through the API


InvoiceControllers.js – implements the list invoices and add invoice controllers which call into the invoiceDataService. The code is shown below:


app.js – changed to add the modules for these new files

Also we added new routes for the add, edit, view invoices.


Update the List Invoice View to allow editing of the Invoice

So now we have the ability to view a list invoices from the GetAll() function of the InvoiceController.

We should allow a user to view and edit an invoice. This is implemented by the following changes.

list-invoices.html – the code is shown below:

The list-invoices.html now has an event to respond to an onclick event. This passes through the current invoice.reference of the record so that we are editing the right Invoice.

This calls into the updated controller, which exposes the function showInvoice()  on the $scope object. The function uses the $location service to change the Angular view to #/invoice/{reference]/view which will in turn direct the user to the view-invoice.html page.

We will discuss that bit of the solution next.


Another view was created called invoice-display.html, this is the code:

The code above represents the display invoice view, a bit of a mouthful I know. To be honest I am not sure why I did it this way but hey ho. I mean, there is no need for a view for new, edit and view Invoice. I will come back and refactor this in a later episode.

This view has got an edit button, which will allow us to transition and edit the invoice. This calls into the viewInvoiceController.editInvoice() function.



Another view was created for edit-invoice.html  this is the code:

The code above represents the edit invoice view. This allows a user to make changes to the invoice and then save those changes back by calling into the Invoice Controller REST API.

The code is structured in a similar way to that of the edit Invoice and add Invoice.

On a successful save then the user is returned back to the list of invoices.



The following problems were experienced whilst building out this portion of the application.

Error when viewing the invoice due to issue with routing

Error: {“message”:”The request is invalid.”,”messageDetail”:”The parameters dictionary contains a null entry for parameter ‘id’ of non-nullable type ‘System.Int32’ for method ‘Itsp365.InvoiceFormApp.Api.Models.Entities.InvoiceForm Get(Int32)’ in ‘Itsp365.InvoiceFormApp.Api.Controllers.InvoiceController’.

The cause of this was my WebApiConfig.cs. Which setup a route:

name: “DefaultApi”,
routeTemplate: “api/{controller}/{id}”,
defaults: new { id= RouteParameter.Optional }

Unfortunately, this did not resolve to the function

InvoiceController.Get(string reference);

bur rather the function

InvoiceController.Get(int id);

The following change was made to fix the routing:

name: “DefaultApi”,
routeTemplate: “api/{controller}/{reference}”,
defaults: new { reference= RouteParameter.Optional }


Method HTTP Status Code 405: Method not allowed

This error message was thrown when I added the edit Invoice feature. The edit invoice feature when it saves, calls into the API using an HTTP PUT method. The call fails with a message saying that the Method is not allowed.

In turns out that this issue was very similar to the routing error just mentioned.

The default route was changed to:

name: “DefaultApi”,
routeTemplate: “api/{controller}/{reference}”,
defaults: new { reference= RouteParameter.Optional }

Therefore, the routing was expecting to the PUT method to have method signature such as:


Update(string reference, [FromBody] invoice)

but we had:


Update(string id, [FromBody] invoice)

Making the change to the function to correct the name of the first parameter from id to reference resolved the issue and the save button worked correctly.


This episode we added support to add/edit and update our Invoices through the MVC Web API. This involved additions to both the server side WebAPI and the Angular client side.

We had a few problems which have been explained.

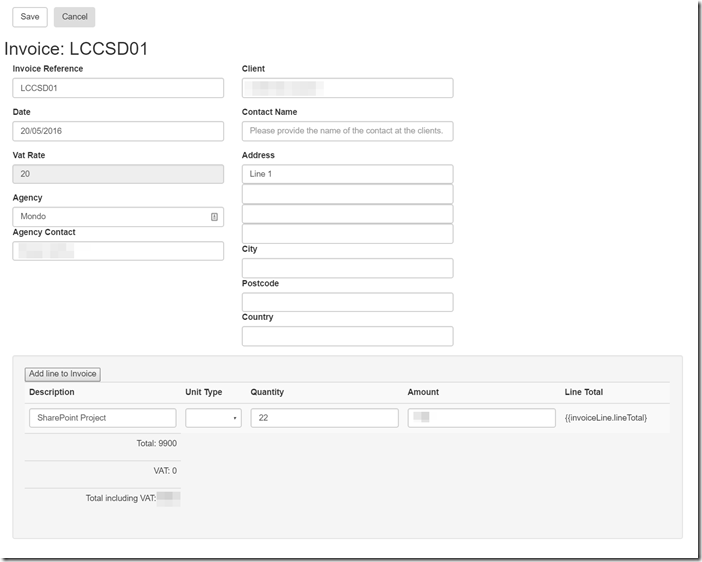

Here are the screenshots showing the changes in action:





The repository for the Invoice Form App Client can be found here:


The repository for the Invoice Form App API can be found here:


Next Episode

In the next episode we will start to actually do some Azure Document DB. The WebAPI will be modified and we will implement the calls into Azure Document Db.

Thanks for reading, I hope you can join us for the next session!
